Ready For Production AI Applications

LiteGraph brings the core database, server, SDKs, MCP tools, console, dashboard, and operational stack into one coordinated release.

Native Graph Query

Run Cypher/GQL-inspired graph reads, traversals, filters, aggregates, supplied-vector search, and child-object mutations inside one tenant and one graph.

Graph Transactions

Commit or roll back graph-scoped node, edge, label, tag, and vector changes as a single unit with structured operation results.

Graph Plus Vector Search

Attach vectors to graph objects and use HNSW indexing, metadata filters, and graph context together instead of splitting data across separate systems.

Provider-Neutral Storage

Use SQLite by default for zero-config development and PostgreSQL for production. MySQL and SQL Server have explicit provider placeholders for future expansion.

RBAC And Scoped Credentials

Protect REST and MCP access with built-in roles, custom roles, credential scopes, immutable system roles, and authorization audit records.

MCP Server

Let MCP-compatible AI tools inspect, query, and mutate LiteGraph through a maintained server with REST-boundary authorization.

Query Relationships Directly

LiteGraph native graph query is a parser-backed, LiteGraph-native profile inspired by familiar graph query models.

MATCH (person:Person)-[works:WORKS_ON]->(project:Project)
WHERE person.data.role = $role
RETURN person, works, project
ORDER BY person.name
LIMIT 10

Execution surfaces

Query from every surface

Use the same graph-scoped query model from embedded applications, HTTP clients, MCP tools, and terminal workflows.

C# embeddedclient.Query.Execute(...)
RESTPOST /v1.0/tenants/{tenantGuid}/graphs/{graphGuid}/query
MCPgraph/query
Consolelg --execute "MATCH (n) RETURN n"

Open the query language guide

Operationally Ready

PostgreSQL Production Backend

SQLite remains the local default. PostgreSQL is the recommended production backend with provider-specific SQL, JSON filtering, transactions, and migration guidance.

Prometheus Metrics

Expose HTTP, repository, query, vector, authorization, and request history metrics through the Prometheus-compatible /metrics endpoint.

OpenTelemetry Instrumentation

Trace request, repository, query, vector index, and authorization activity with LiteGraph-specific tags and status information.

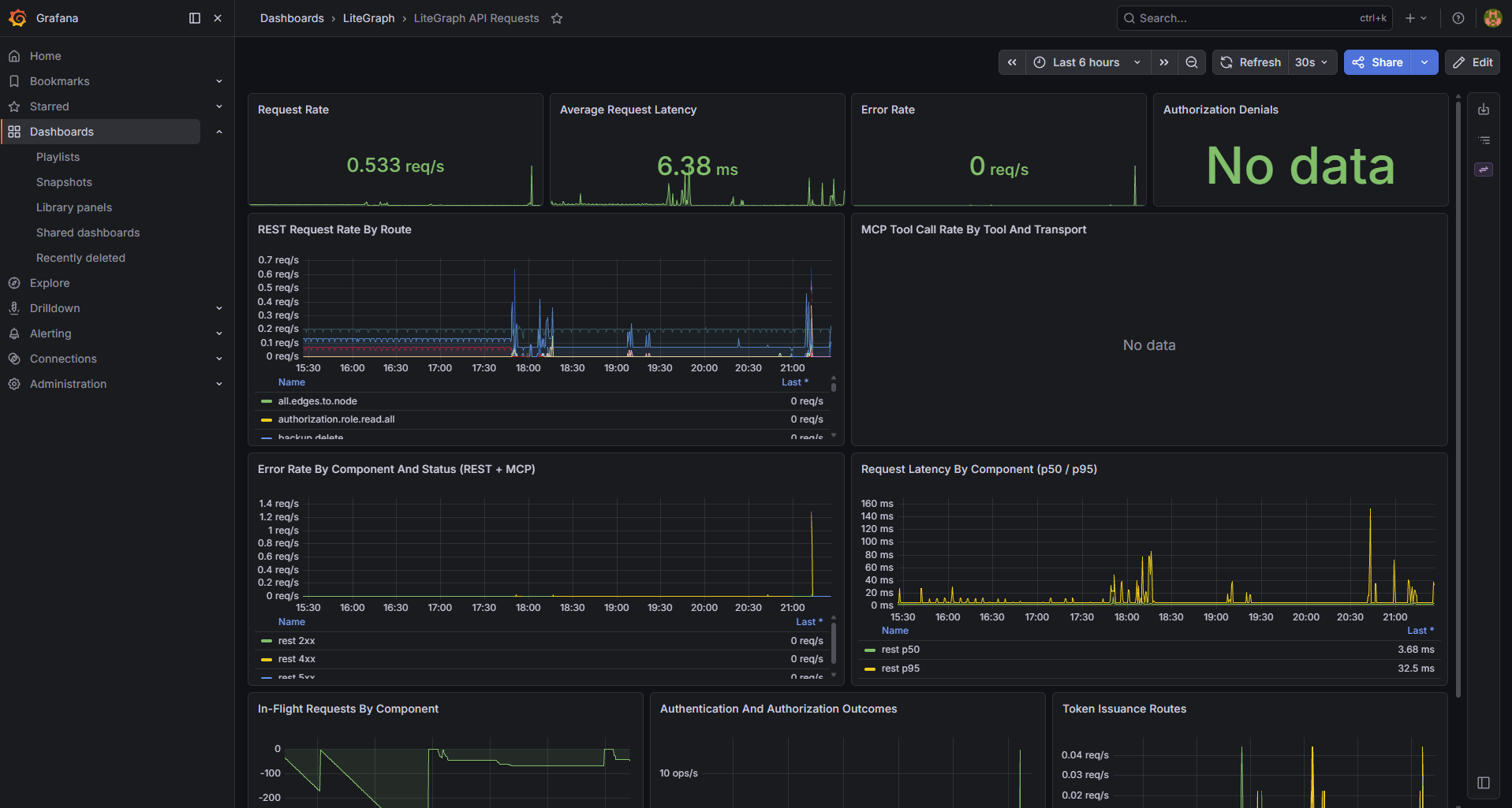

Provisioned Grafana Dashboard

The Docker Compose stack starts Grafana OSS and Prometheus with a preloaded LiteGraph dashboard for immediate telemetry inspection.

Request History

Use recent request details for debugging while Prometheus and OpenTelemetry carry aggregate monitoring and tracing.

LiteGraphConsole

Install the lg global tool for an interactive shell over a local database or remote endpoint, similar to using sqlite3.

Comprehensive Dashboard

Manage authorization, inspect request history, explore API calls, view JSON records, and monitor operational state from the web dashboard.

SDK and MCP Coverage

C#, JavaScript, Python, REST, MCP, and dashboard surfaces are aligned with the v6 feature set where each surface is appropriate.

Where LiteGraph Fits

Use LiteGraph when graph structure, vector similarity, object metadata, and operational control need to live together.

RAG Beyond Vectors

Combine semantic search with graph relationships, labels, tags, and JSON data for retrieval that keeps structure and meaning together.

Knowledge Graphs

Model people, systems, documents, assets, events, and relationships with queryable metadata and typed graph edges.

Agent Memory

Expose LiteGraph through MCP so AI agents can store context, inspect relationships, query history, and update graph state.

Operational Graphs

Track infrastructure, identity, security, lineage, and dependency networks with transactional updates and production monitoring.

Get Started In Minutes

Run the full stack with Docker Compose, use LiteGraph embedded in .NET, call REST directly, or install the lg console.

git clone https://github.com/litegraphdb/litegraph.git
cd litegraph/docker
docker compose up -d

# LiteGraph REST: http://localhost:8701
# LiteGraph MCP:  http://localhost:8200
# Prometheus:     http://localhost:9090
# Grafana OSS:    http://localhost:3000

git clone https://github.com/litegraphdb/litegraph.git
cd litegraph

# Build the solution
dotnet build src/LiteGraph.sln -c Release -f net8.0

# Start LiteGraph Server
dotnet run --project src/LiteGraph.Server/LiteGraph.Server.csproj --framework net8.0

# Start the dashboard in another terminal
cd dashboard
npm install
npm run dev

curl -X POST http://localhost:8701/v1.0/tenants/${TENANT}/graphs/${GRAPH}/query \
  -H "Authorization: Bearer ${TOKEN}" \
  -H "Content-Type: application/json" \
  -d '{
    "Query": "MATCH (n:Person) WHERE n.data.role = $role RETURN n LIMIT 10",
    "Parameters": {
      "role": "engineer"
    },
    "MaxResults": 100,
    "TimeoutSeconds": 30
  }'

using System.Collections.Generic;
using LiteGraph;
using LiteGraph.GraphRepositories.Sqlite;

LiteGraphClient client = new LiteGraphClient(
    new SqliteGraphRepository("litegraph.db"));

client.InitializeRepository();

TenantMetadata tenant = await client.Tenant.Create(
    new TenantMetadata { Name = "Example tenant" });

Graph graph = await client.Graph.Create(new Graph
{
    TenantGUID = tenant.GUID,
    Name = "Knowledge graph"
});

Node ada = await client.Node.Create(new Node
{
    TenantGUID = tenant.GUID,
    GraphGUID = graph.GUID,
    Name = "Ada",
    Labels = new List<string> { "Person" },
    Data = new { role = "engineer" }
});

GraphQueryResult result = await client.Query.Execute(
    tenant.GUID,
    graph.GUID,
    new GraphQueryRequest
    {
        Query = "MATCH (n:Person) RETURN n LIMIT 10"
    });

curl -X POST http://localhost:8701/v1.0/tenants/${TENANT}/graphs/${GRAPH}/transaction \
  -H "Authorization: Bearer ${TOKEN}" \
  -H "Content-Type: application/json" \
  -d '{
    "Operations": [
      {
        "OperationType": "Create",
        "ObjectType": "Node",
        "Payload": {
          "Name": "Ada",
          "Labels": ["Person"],
          "Data": { "role": "engineer" }
        }
      }
    ],
    "MaxOperations": 100,
    "TimeoutSeconds": 30
  }'

# From the LiteGraph repository root
install-tool.bat

# Local SQLite database
lg --database litegraph.db \
  --tenant 00000000-0000-0000-0000-000000000000 \
  --graph 00000000-0000-0000-0000-000000000000

# Remote server
lg --endpoint http://localhost:8701 \
  --tenant ${TENANT} \
  --graph ${GRAPH} \
  --token ${TOKEN} \
  --execute "MATCH (n) RETURN n LIMIT 5"

Clients And Packages

C# / .NET

v6.0.0

Use LiteGraph embedded with SQLite or consume a LiteGraph Server through the C# SDK.

Install via NuGet

JavaScript

npm

Use the JavaScript SDK for browser and Node.js applications that call LiteGraph Server.

npm i litegraphdb

View on npm

Python

PyPI

Use the Python SDK for scripts, ingestion jobs, and application services.

pip install litegraph_sdk

View on PyPI

REST And MCP

HTTP

Call REST directly or expose LiteGraph to AI tools through HTTP, TCP, and WebSocket MCP transports.

REST API docs MCP server docs

Docker Deployment

The checked-in Compose stack starts LiteGraph Server, LiteGraph MCP, Prometheus, and Grafana OSS.

Server And Dashboard Images

docker pull jchristn77/litegraph:v6.0.0
docker pull jchristn77/litegraph-mcp:v6.0.0
docker pull jchristn77/litegraph-ui:v6.0.0

cd docker
docker compose up -d

Observability

# Prometheus scrapes LiteGraph at:
http://localhost:8701/metrics

# Grafana is available at:
http://localhost:3000

# Default Grafana login:
admin / admin

What Starts

LiteGraph REST server on port 8701
LiteGraph MCP server on port 8200
Prometheus on port 9090
Grafana OSS on port 3000 with a provisioned LiteGraph dashboard
Named volumes for Prometheus and Grafana storage

Server Image MCP Image Compose Files

Dashboard And Administration

The web dashboard is now aligned with v6 authorization, request history, API exploration, graph management, and operational monitoring workflows.

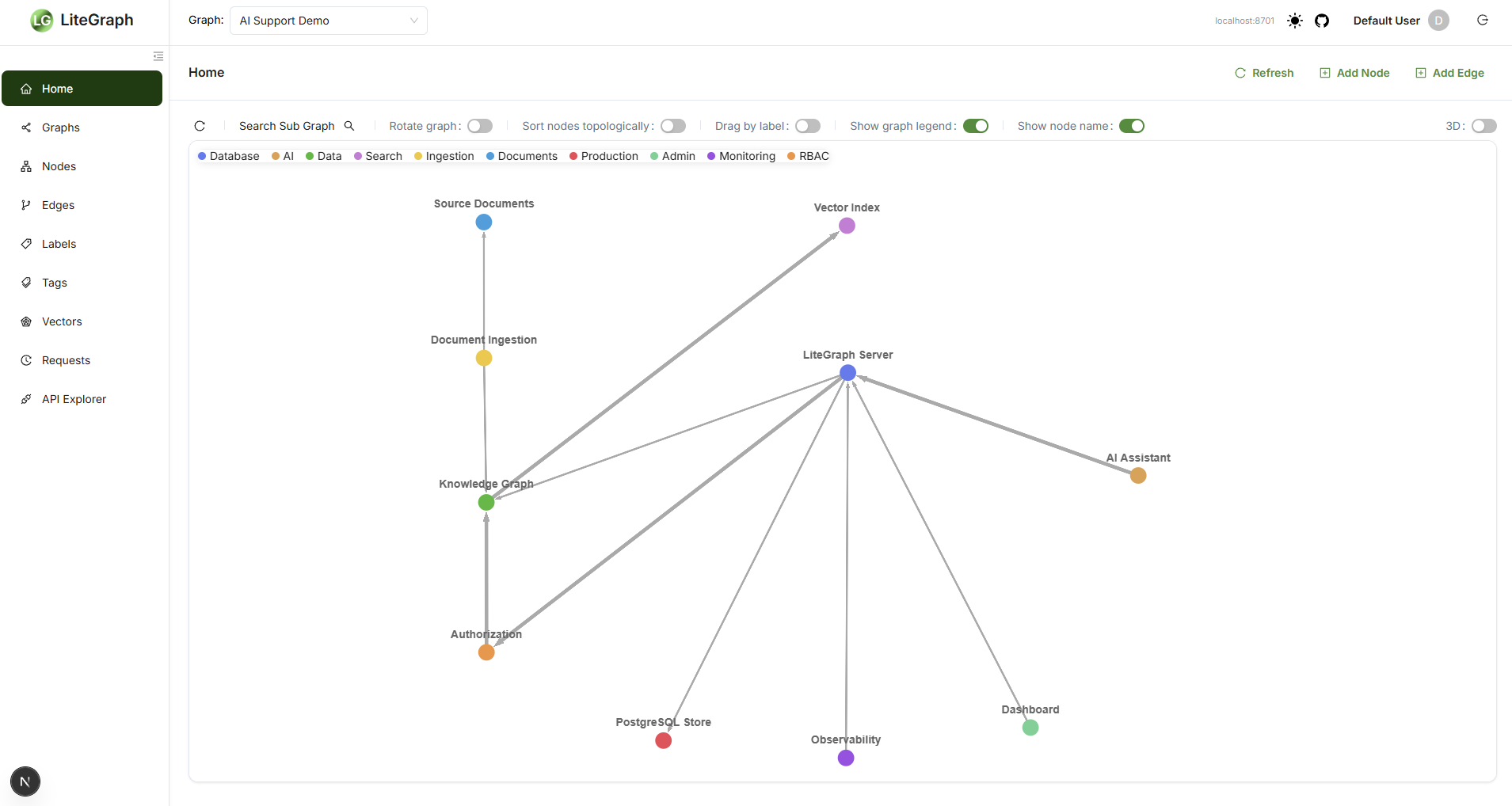

LiteGraph dashboard graph workspace for the AI Support Demo graph — Graph Workspace Explore connected AI system data with labels, names, graph controls, and relationship context in one workspace.

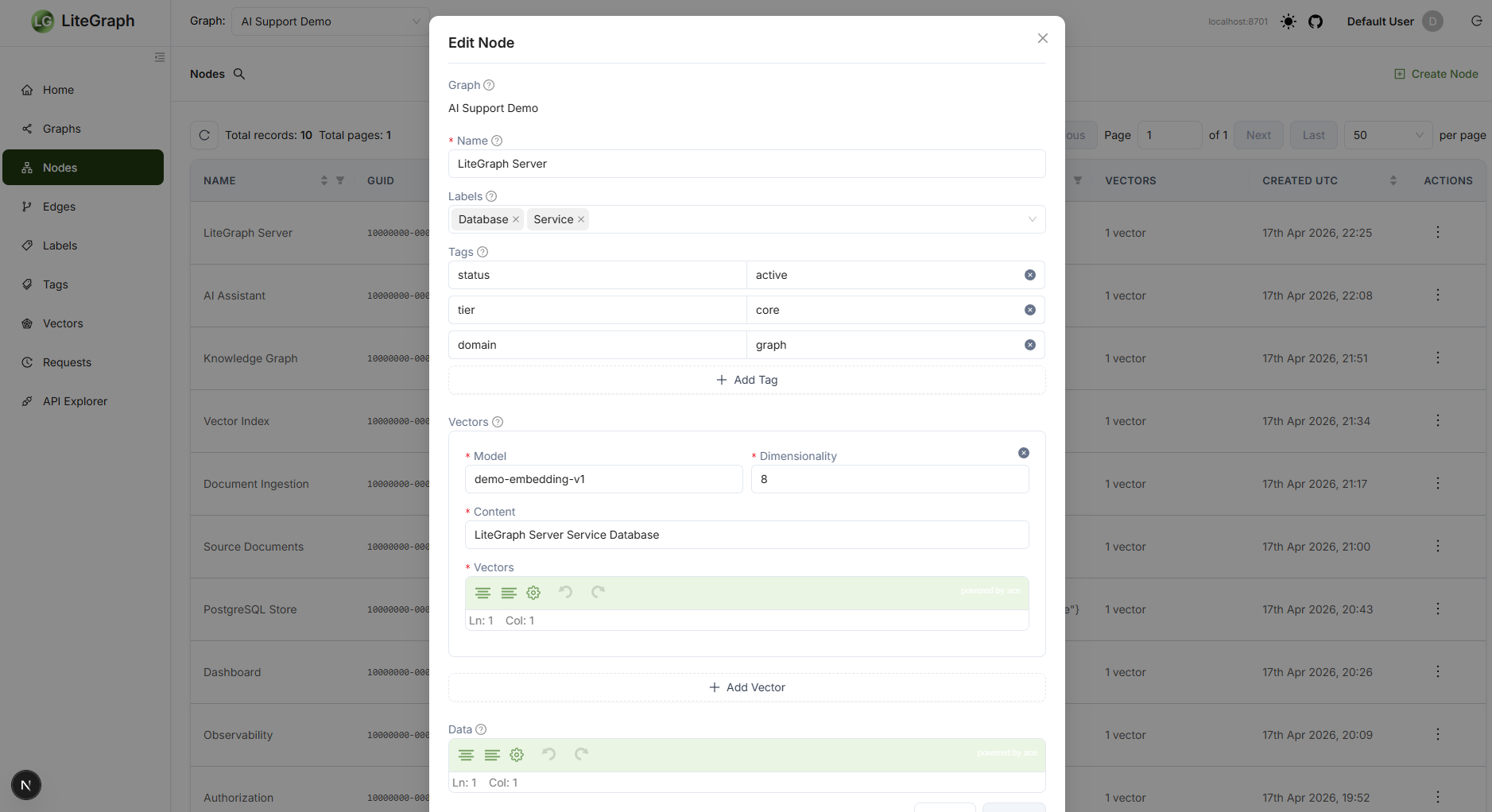

LiteGraph node editor with labels, tags, vector metadata, and data fields — Node And Vector Editing Update labels, tags, vectors, and JSON data without switching tools.

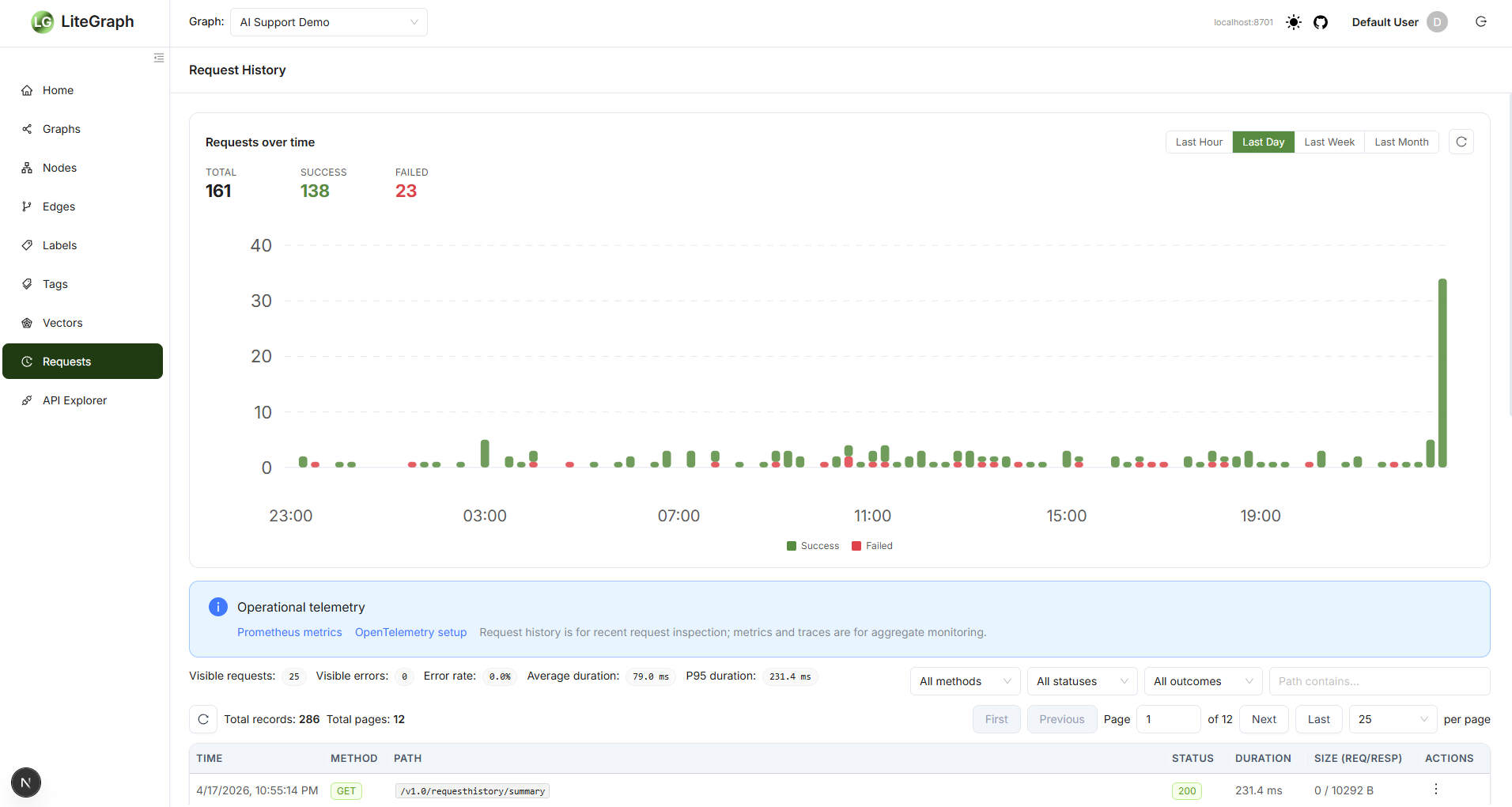

LiteGraph request history dashboard with success and failure telemetry over time — Request Telemetry Track recent requests, failures, duration, and operational links close to the graph workflow.

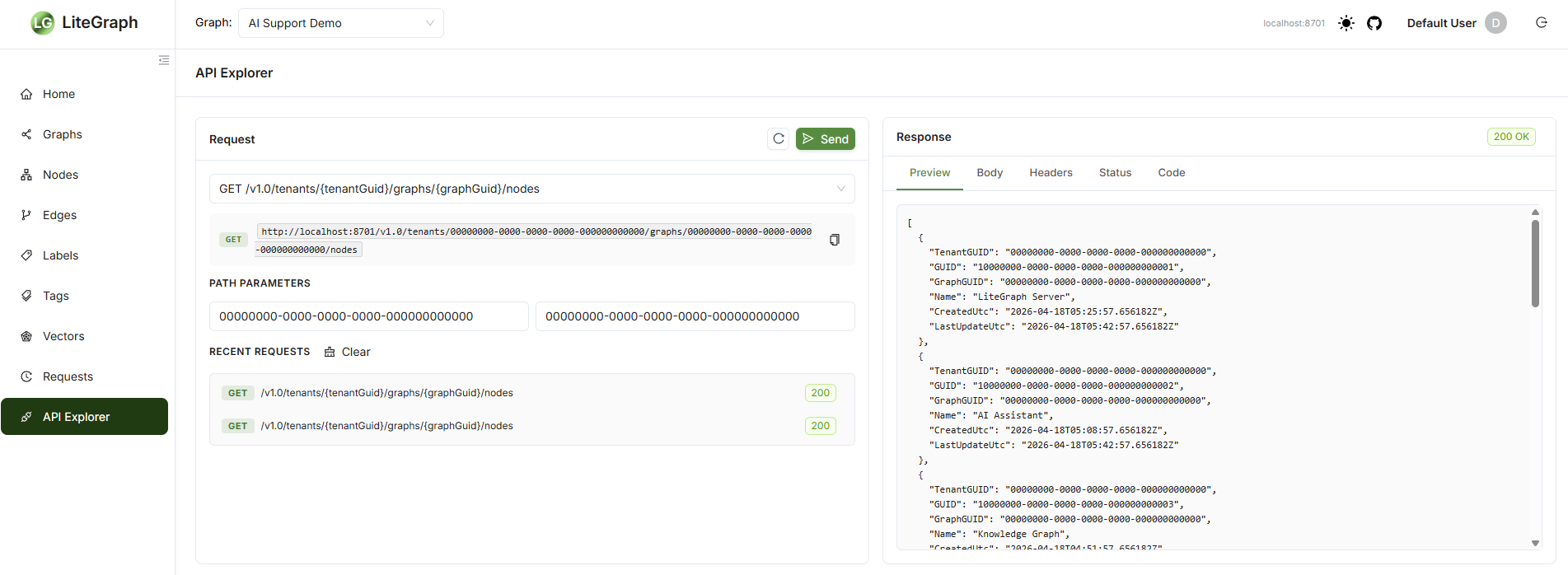

LiteGraph API Explorer with request parameters and JSON response preview — API Explorer Send REST calls, inspect responses, and keep recent requests available during development.

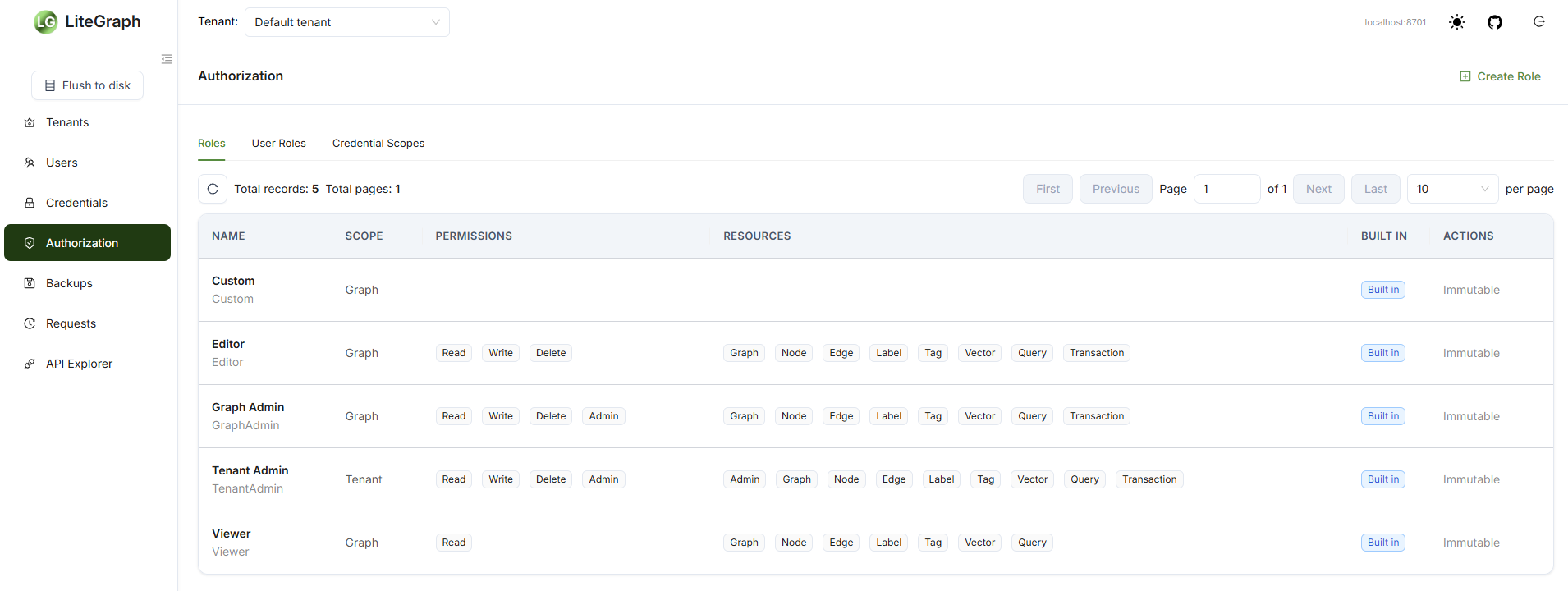

LiteGraph authorization page listing roles, scopes, permissions, and resources — Authorization Manage tenant roles, graph scopes, permissions, resources, and built-in policy boundaries.

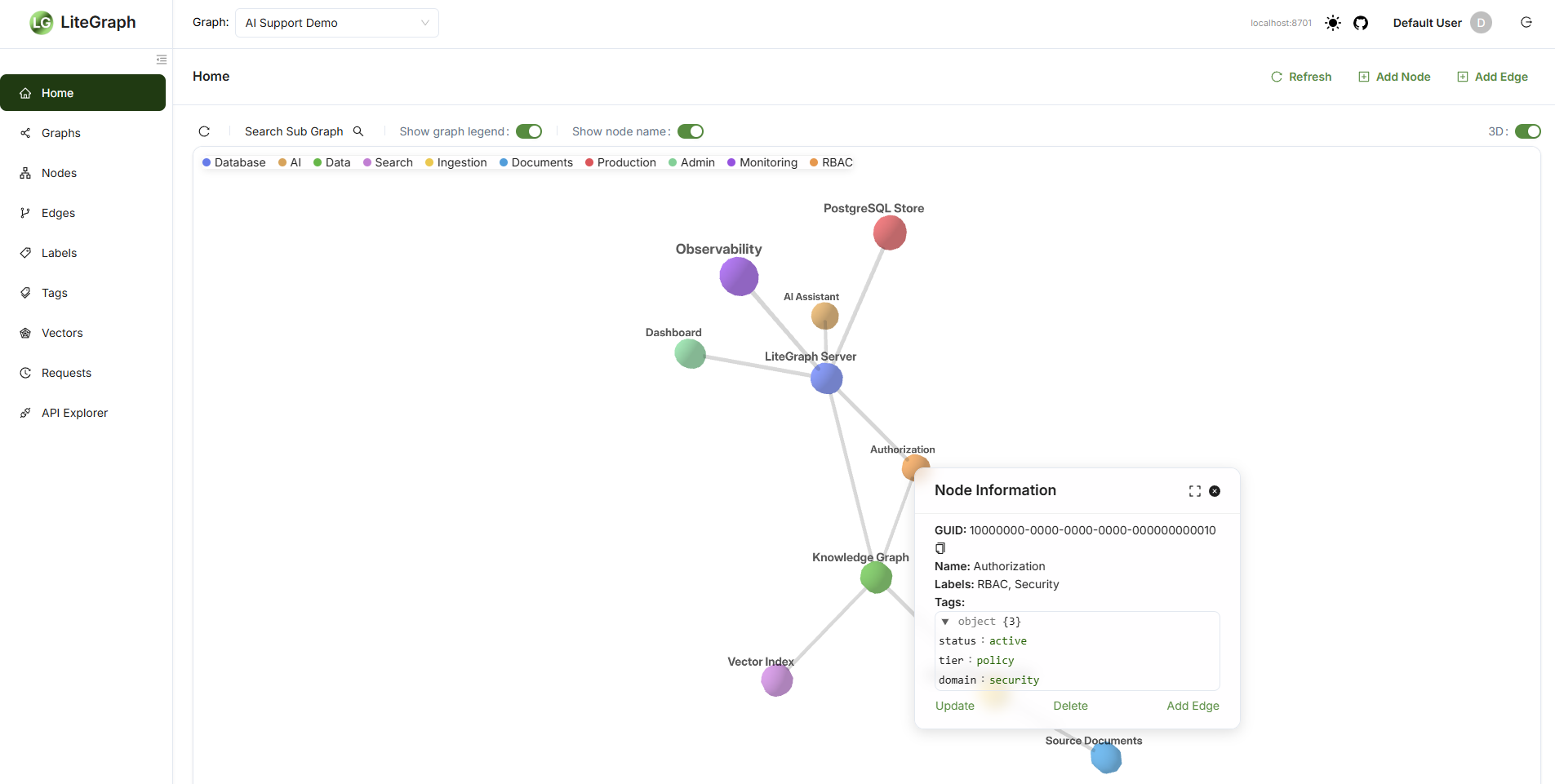

LiteGraph 3D graph view with node information panel for an authorization node — 3D Graph Inspection Inspect graph structure, node metadata, and connected operational context in an interactive view.

Dashboard Features

Graph Management - Create and manage graphs, nodes, edges, labels, tags, and vectors
Authorization - Manage roles, scopes, immutable built-in roles, and assignments
Request History - Inspect recent requests, timing, outcomes, JSON, and diagnostics
API Explorer - Send REST calls and query templates from the browser
Visualization - Explore graph structure with 2D and 3D views
Operations - Use monitoring links and request detail views during administration

Run The Dashboard

docker run -d --name litegraph-ui -p 3000:3000 \
  -e LITEGRAPH_SERVER=http://localhost:8701 \
  jchristn77/litegraph-ui:v6.0.0

# Or run from the monorepo
cd dashboard
npm install
npm run dev

Dashboard Source Dashboard Image
